Connection package atmos GSE up to 30 kW

Atmos GSE connection package up to 30 kW – Comprehensive basic solution

Product overview

The Atmos GSE connection package up to 30 kW offers a versatile basic solution for modern heating systems. A well-conceived selection of components, such as the return temperature booster and high-efficiency pump, enables reliable control and optimization of the heating system.

This package is designed for projects that prioritize efficiency and safety. It includes all the essential elements for operating systems up to 30 kW and represents an ideal solution for the technical implementation of your heating concepts.

High-quality equipment and components

The key components include the return temperature booster with a choice of 70°C or 72°C, including a high-efficiency pump, thermometer, and insulation. This set is complemented by the boiler safety assembly, which is specifically designed for outputs up to 50 kW, as well as other essential safety devices such as the thermal discharge safety device.

Other important components include various valves, nipples, and fittings made of high-quality materials such as brass and gunmetal. These guarantee robust connection technology and ensure the smooth operation of the entire heating installation.

Versatile applications and installation

Thanks to the careful selection of solder and press fittings, this connection package is suitable for a variety of heating application scenarios. It enables flexible connection options and precise integration into existing systems or new buildings.

The combination of safety assemblies, strainers, and check valves ensures the highest standards in operational reliability and durability. This comprehensive range simplifies installation and helps ensure a focus on both efficiency and sustainability.

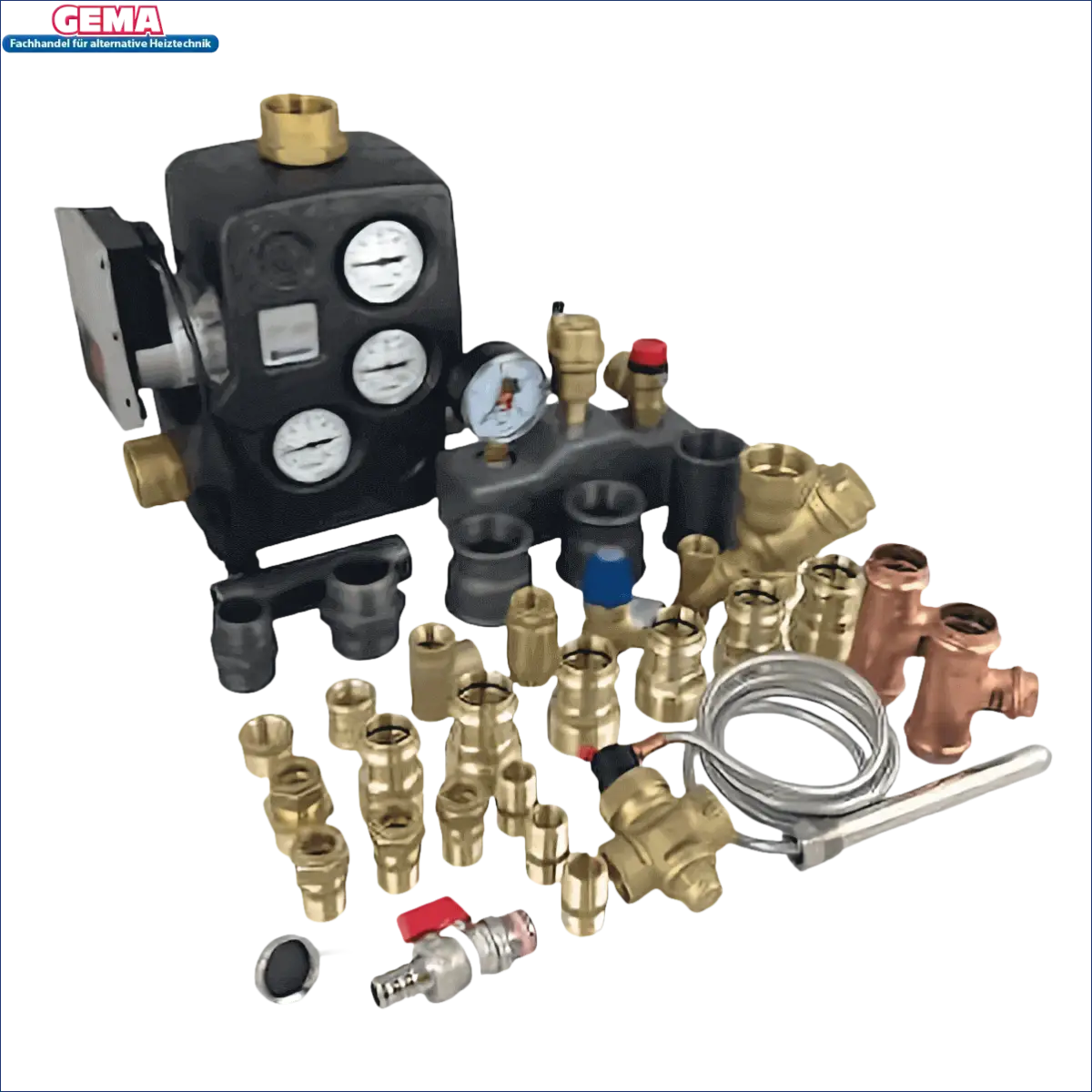

Scope of delivery

base

• 1x return temperature increase 70°C or 72°C including high-efficiency pump, thermometer and insulation, 1¼"
• 1x boiler safety group 1"-50kW
• 1x thermal drain safety device ¾"
• 1x boiler filling and draining tap ½" brass
• 1x membrane safety valve brass ½" 6 bar
• 3x gunmetal double nipple ½"
• 1x gunmetal sleeve ½"
• 1x Gunmetal Red-Piece ¾"x½"
• 1x gunmetal T-piece ½"
• 1x double nipple black 1¼"
• 1x reducing double nipple black 1½"x1¼"
• 1x pipe nipple black 1"x120mm
• 1x reducer black 1½"x1¼"
• 1x T-piece reduced black 1¼x1¼x1"
• 1x angle black 1½" 90° i/a
• 1x strainer 1¼" brass
• 1x strainer ½" brass
• 1x Euro check valve brass ½"

plus solder fittings

• 1x T-piece 28mm
• 1x T-piece 28x22x28mm
• 3x heel nipples 15x½"
• 1x heel nipple 15x¾"
• 1x heel nipple 22x1"
• 5x heel nipples 28x1¼"

plus press fittings

• 1x Profipress copper T-piece 28mm
• 1x Profipress copper T-piece 28x22x28mm
• 3x Profipress gunmetal union piece 15x½"
• 1x Profipress gunmetal union piece 15x¾"
• 1x Profipress gunmetal union piece 22x1"
• 5x Profipress gunmetal union piece 28x1¼"
