Vaillant Unity Plus | VIH R 120/6 B
Product data sheet
Provider:
Gema GmbH
inkl. MwSt. / zzgl. Versand
Guaranteed safe checkout
Vaillant Unity Plus | VIH R 120/6 B

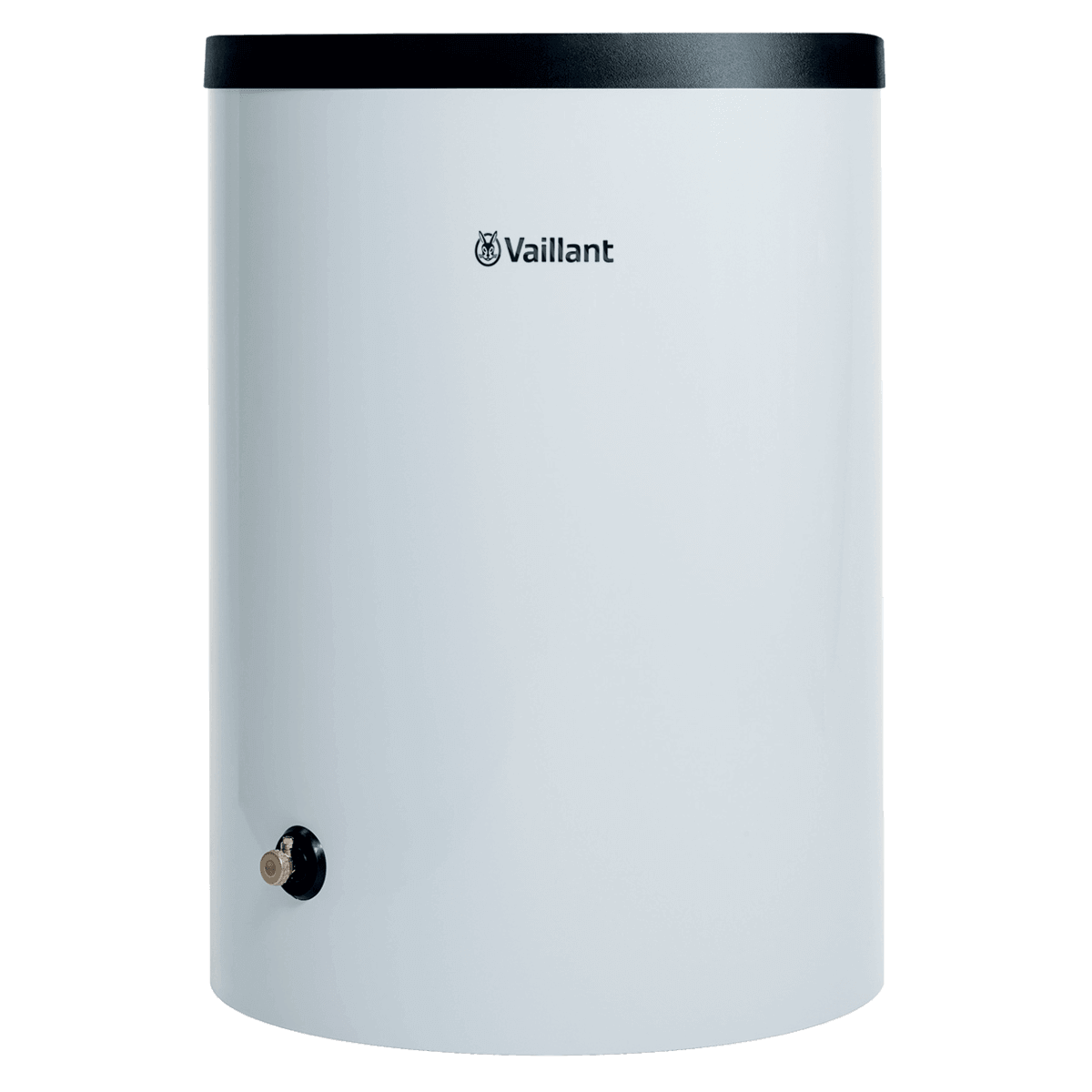

Vaillant uniSTOR plus | VIH R 120/6 B
Every Vaillant uniSTOR VIH R hot water cylinder offers you both economical operation with low energy consumption and maximum hot water comfort.
The coil storage tanks, which are technically tailored to Vaillant heating appliances, are available in two product lines and three different sizes: with 120, 150 and 200 litres capacity.
The product line Vaillant uniSTOR plus impresses with high-quality standard thermal insulation at a lower price, while the uniSTOR VIH RH product line offers even higher efficiency, as the vacuum insulation jacket ensures a significant reduction in standby energy losses, thus reducing energy consumption and energy costs.
Product features
- Enamelled hot water tank with thermal insulation
- Internal tube heat exchanger
- Magnesium protective anode
- Gravity brake
- Circulation connection
- Drain tap
- Drinking water side (storage tank and heat exchanger) with high-quality enamel and magnesium protective anode
Special features
- Hot water tank, indirectly heated
- All connections led out to the top
- Optimally fitting piping kits available
- High-quality PU foam thermal insulation
Technical data: Vaillant uniSTOR plus | VIH R 120/6 B
| Total memory content | l | 117 |
|---|---|---|
| WW output power | l/10min | 163 |
| Continuous hot water output | l/h | 527 (21.7 kW) |
| Standby heat loss storage | kWh/24h | 1.1 |
| Contents heating side | l | 4.8 |
| Max operating pressure hot water side | bear | 10 |
| Max operating pressure on the heating side | bear | 10 |
| Hot water temperature (max) | °C | 85 |
| Heating temperature (Max) | °C | 110 |
| Weight ready for use | kg | 185 |
| Product dimensions (height/width/depth) | mm | 853/590/590 |
| Product weight | kg | 68 |
| Heating connection (flow and return) | R1 | |
| Circulation connection | R 3/4 | |
| Anode connection | G 1/2 | |
| Cold water connection, hot water | R 3/4 |
Scope of delivery
- 1 uniSTOR VIH R
- 1 gravity brake for heating circuit
- 1 cap for circulation connection
- 1 Operating and installation instructions
