Gasification boiler Rojek KTP 20 kW – wood gasifier for wood, coal, briquettes 🪵🔥

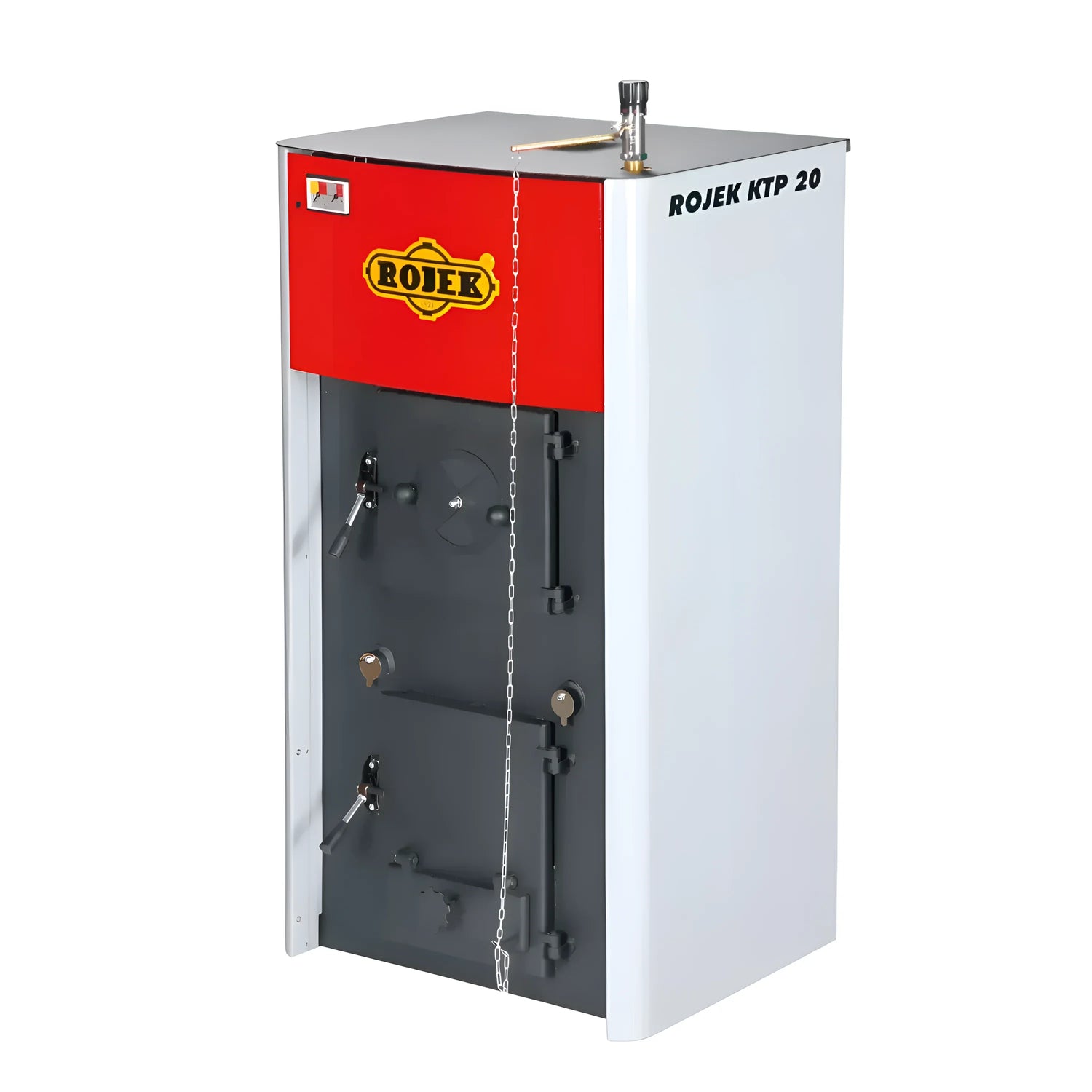

Carburettor boiler Rojek KTP 20 kW

The ROJEK KTP 20–49 hot water boilers for manual loading have been specially developed for the environmentally friendly combustion of logs and lignite.

In addition to these main fuels, various alternative fuels can be used in the Rojek KTP gasification boiler, including short logs, wood briquettes, lignite briquettes, as well as wood chips, sawdust and other biogenic fuels. The variety of suitable fuels and their ability to mix them is based on the flexible, well-thought-out design of the boiler, which makes it particularly insensitive to fluctuating fuel quality.

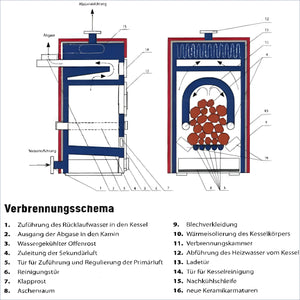

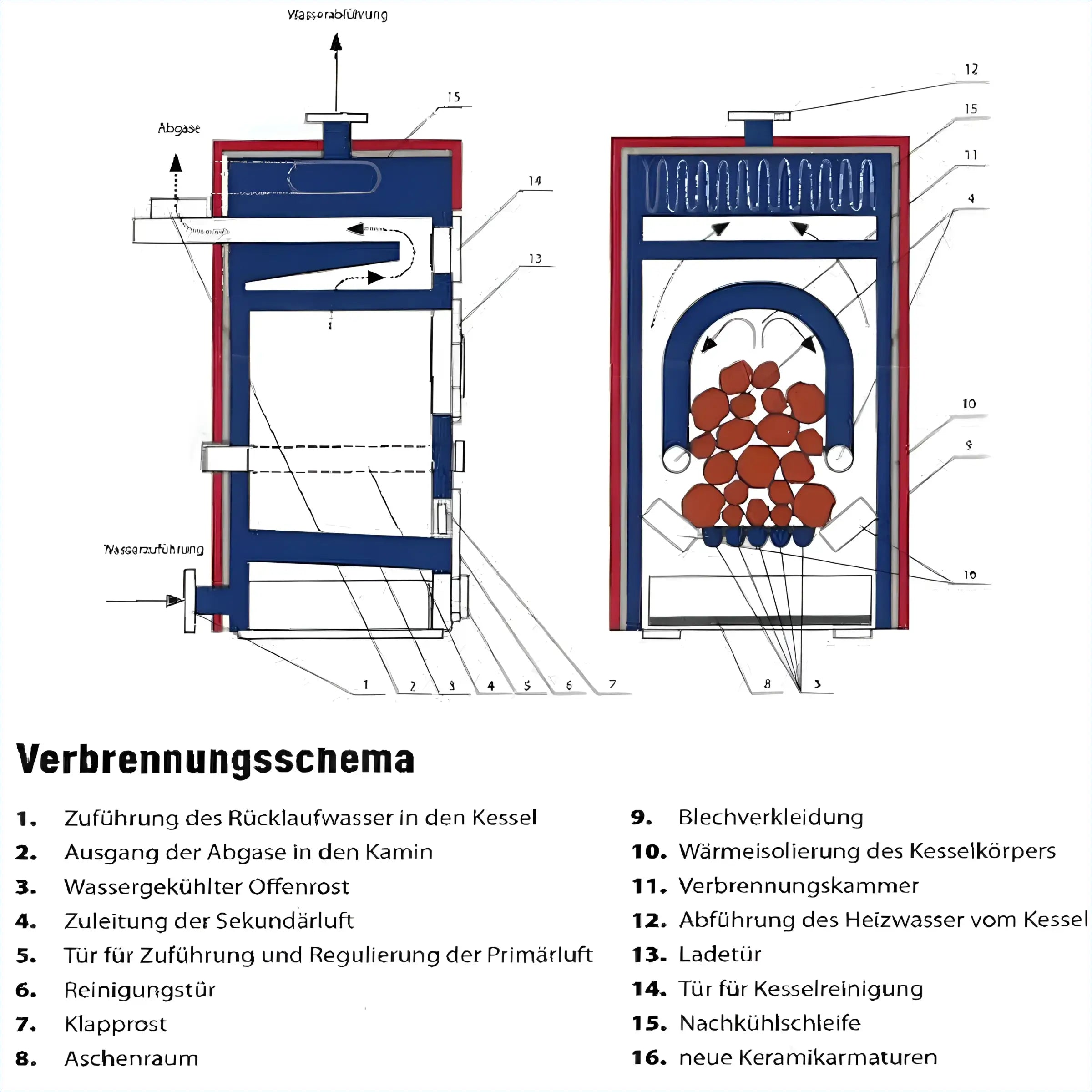

During operation, the boiler operates according to the principle of two-stage combustion, consisting of upstream gasification followed by conventional combustion of the wood gas. This combination enables significantly more efficient and cleaner use of wood and coal, as the entire fuel is optimally utilized and burned with virtually no residue. Thanks to easily adjustable primary and secondary air supplies, the combustion process can be precisely controlled, achieving maximum efficiency and particularly long burnout times.

The Carburettor boiler Rojek KTP 20 kW are made of welded steel boiler plates. The entire boiler body is double-insulated and water-guided – even the grate is made of special heat pipes. This solid construction not only ensures very high heat transfer but also contributes significantly to the boiler's longevity.

The model is characterized by its ease of use and effortless cleaning – a feature that is particularly appreciated by users. Another advantage: neither electricity nor fans nor electronic components are required for commissioning and use. This means that the Rojek wood gasifier Particularly reliable and low-maintenance. Installation is flexible, both for individual heating circuits and circulation systems with a pump. Furthermore, the boiler's performance remains consistently high even with fluctuating fuel quality—making it insensitive to briquettes or wood of varying quality.

Advantages

• Supports a wide range of fuels, including wood, coal and biomass
• Excellent insensitivity to fuel quality
• Can be used in both single and multiple heating circuits; easy connection to systems with pumps
• Reliable protection against overheating thanks to integrated after-cooling circuit
• Suitable for return temperatures up to 55 °C due to integrated pipe grate
• Meets the strict emission class 5 for wood and lignite according to current standards
• Very high combustion efficiency – economically and ecologically advantageous
• Three-year warranty on the tightness of the boiler body, optionally extendable
• Individual design according to customer requirements, for example door stop and flue pipe outlet

Technical data

• Energy efficiency class: A+
• Boiler class: 5
• Nominal heat output: 20 kW
• Efficiency: 78 – 88% (depending on fuel and operating conditions)
• Tensile force: 14 – 16 Pa
• Dust emission: EKODESIGN (EU NO.2015/1189) according to the latest requirements
• Maximum firewood length: 330 mm
• Exhaust gas temperature: 220 – 300 °C

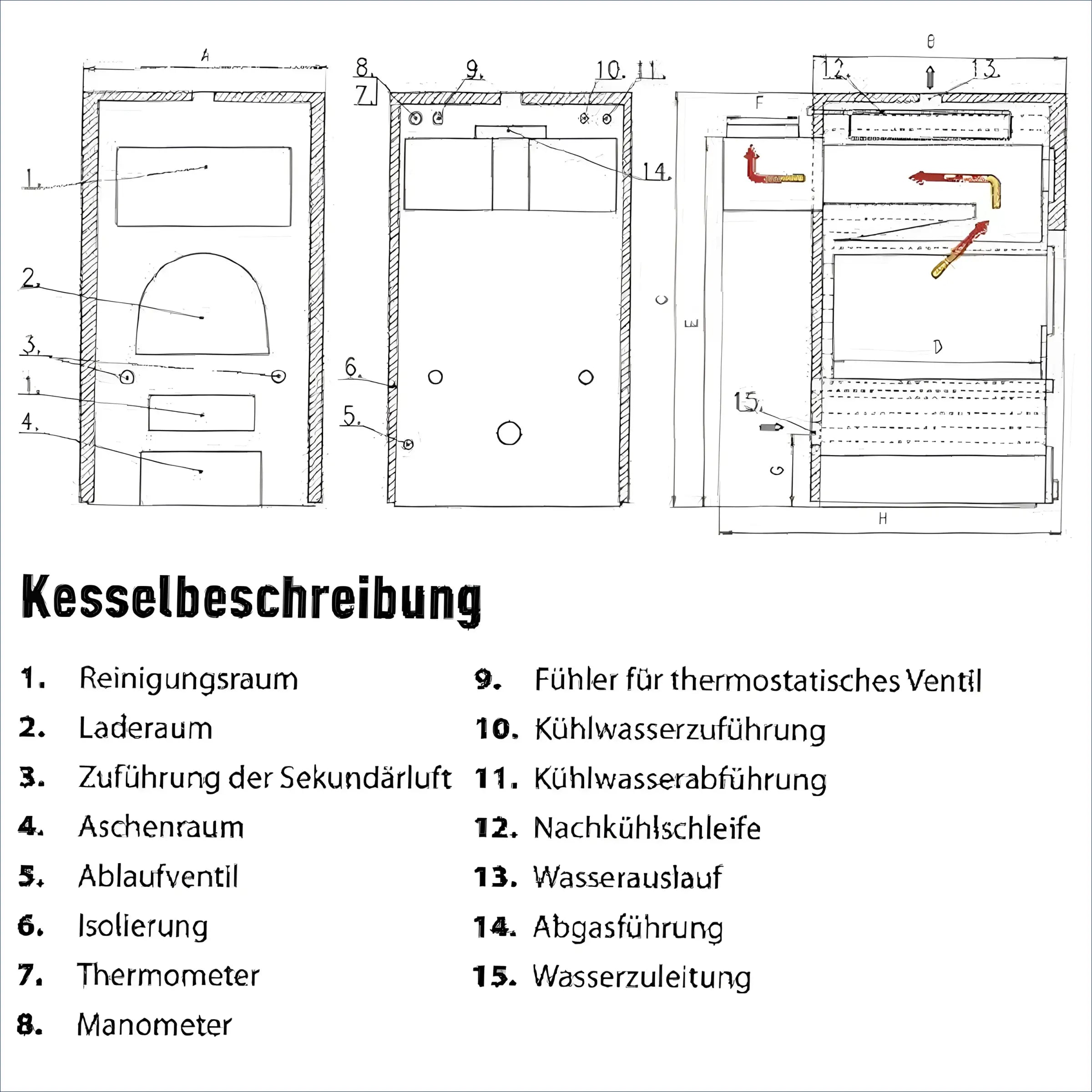

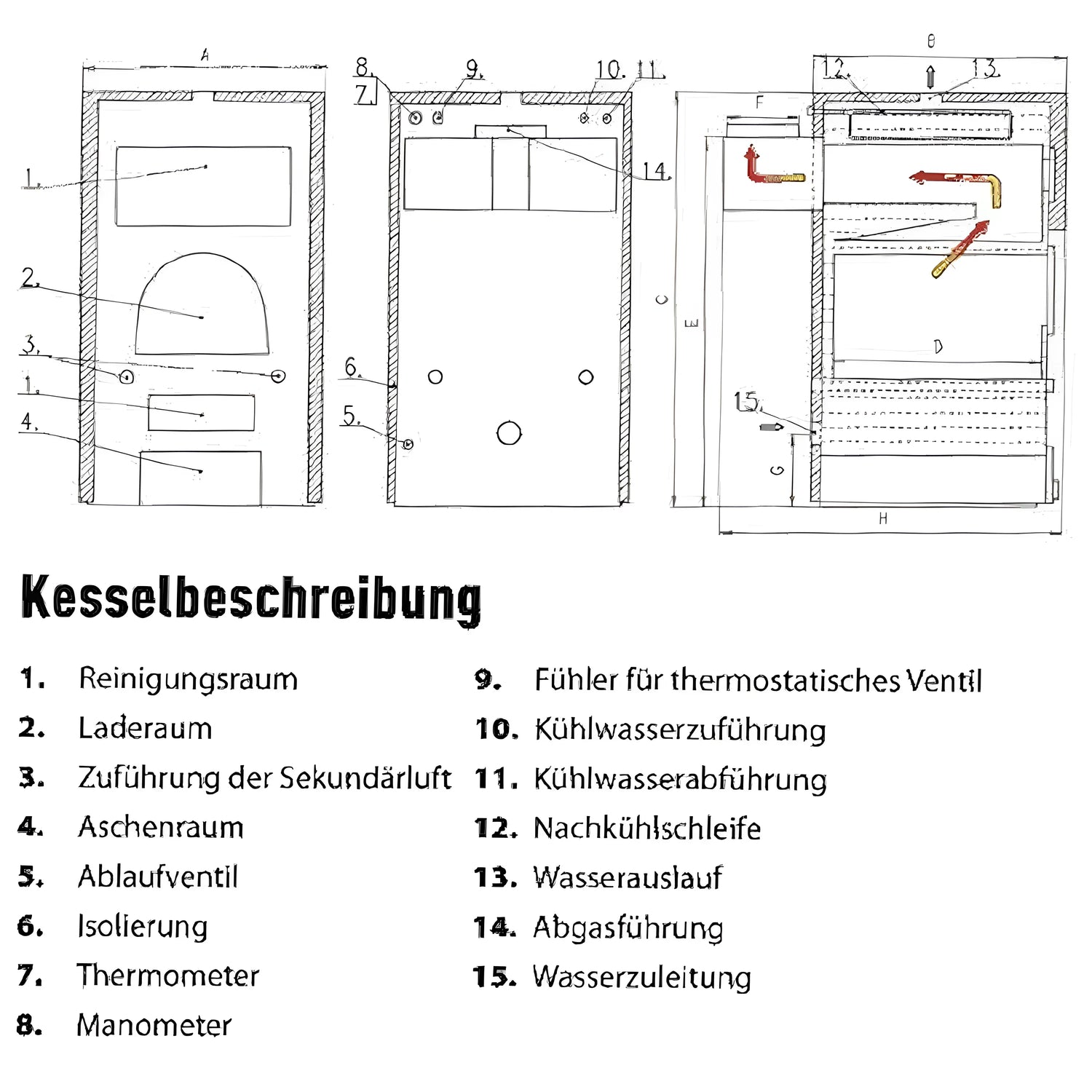

• Height: 1193 mm
• Width: 622 mm
• Depth: 773 mm
• Flue pipe connection: 160 mm
• Weight: 261.0 kg

Scope of delivery

• Boiler Rojek KTP 20 kW
• Assembly & Operating instructions
