150-liter domestic hot water tank with integrated heat exchanger and heating element technology
Product description
The domestic hot water tank with a capacity of 150 liters impresses with its versatile application possibilities in central hot water heating systems. It is equipped with a highly efficient heat exchanger as well as the option to integrate a 2 kW heating element to make hot water generation flexible and demand-oriented.
The tank is ideal for applications that cover a hot water demand of approximately 100 to 180 liters, offering a high level of user comfort. It can be seamlessly integrated in combination with various systems, such as heating boilers, pellet boilers, solid fuel boilers, or even solar thermal systems.
Efficient hot water preparation
The integrated heat exchanger uses the available heat energy to efficiently heat domestic water or process water inside the tank. With the option to retrofit an electric heating element, you have a flexible solution that incorporates both renewable and traditional energy sources.
This combination not only ensures even heat distribution but also supports economical energy use, guaranteeing a consistently high level of hot water comfort.
High-quality heat exchanger and corrosion protection
The heat exchanger features an attractive surface that enables optimal heat transfer. At the same time, the domestic hot water tank is protected by a high-quality enamel coating that provides lasting protection against corrosion.
A large magnesium anode acts as an additional protective measure by working as a sacrificial anode inside the tank, thereby extending the service life of the device.
Versatile applications
The hot water tank is designed for use in a wide variety of settings – from private households to commercial applications. It can be combined with different heating systems, making it the ideal solution for central hot water in residential and commercial areas.
In addition, the connection for circulation and a robust system design ensure smooth operation and easy integration into existing systems.
Technical data of the hot water tank
The tank holds 150 liters and offers a heat exchanger surface of 1.4 m², which accommodates a volume of 6.1 liters. The connections are designed with 3/4" male thread, so that flow, return, and circulation can be connected without any problems. Additionally, a connection for an electric heating element (1 1/2" female thread) is integrated.
With thermal insulation made of firmly foamed polyurethane foam and a maximum operating pressure of 6 bar, the tank is designed for a long service life and safe operation. The heat loss of only 36 watts also underscores its high efficiency.

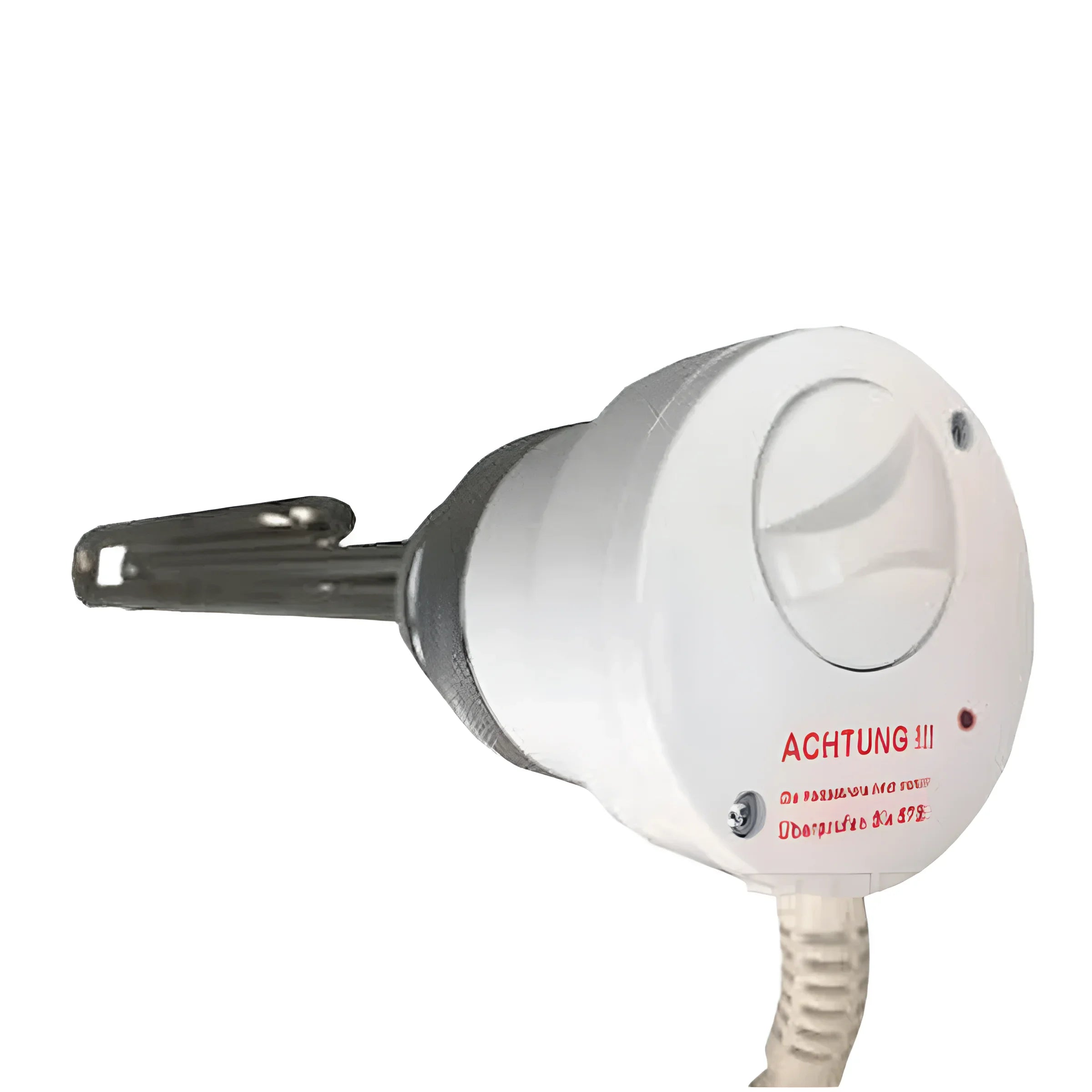

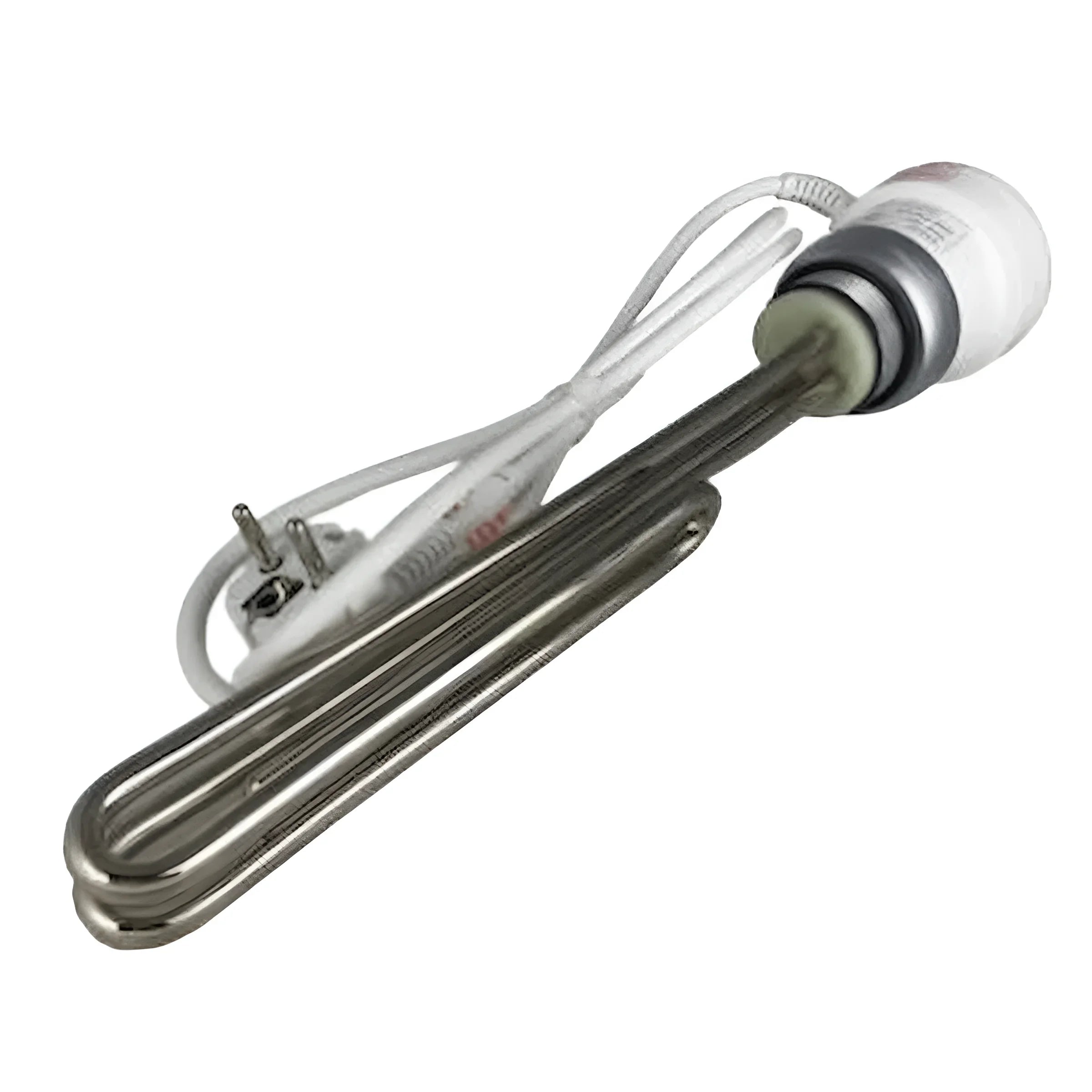

Elektromet heating element heating cartridge 2 kW – reliable support
The 2 kW heating element from Elektromet is a high-quality heating cartridge that is ideal for supplementing the hot water tank. Made of resistant stainless steel and equipped with a robust heating coil made of Alloy 825, it guarantees long-lasting and safe heat supply.
The precisely adjustable thermostat housing enables flexible temperature control between 5 and 75 °C, while an integrated safety temperature limiter at 93 °C protects against overheating. This ensures an optimal thermal state at all times.
Features and safety of the heating cartridge

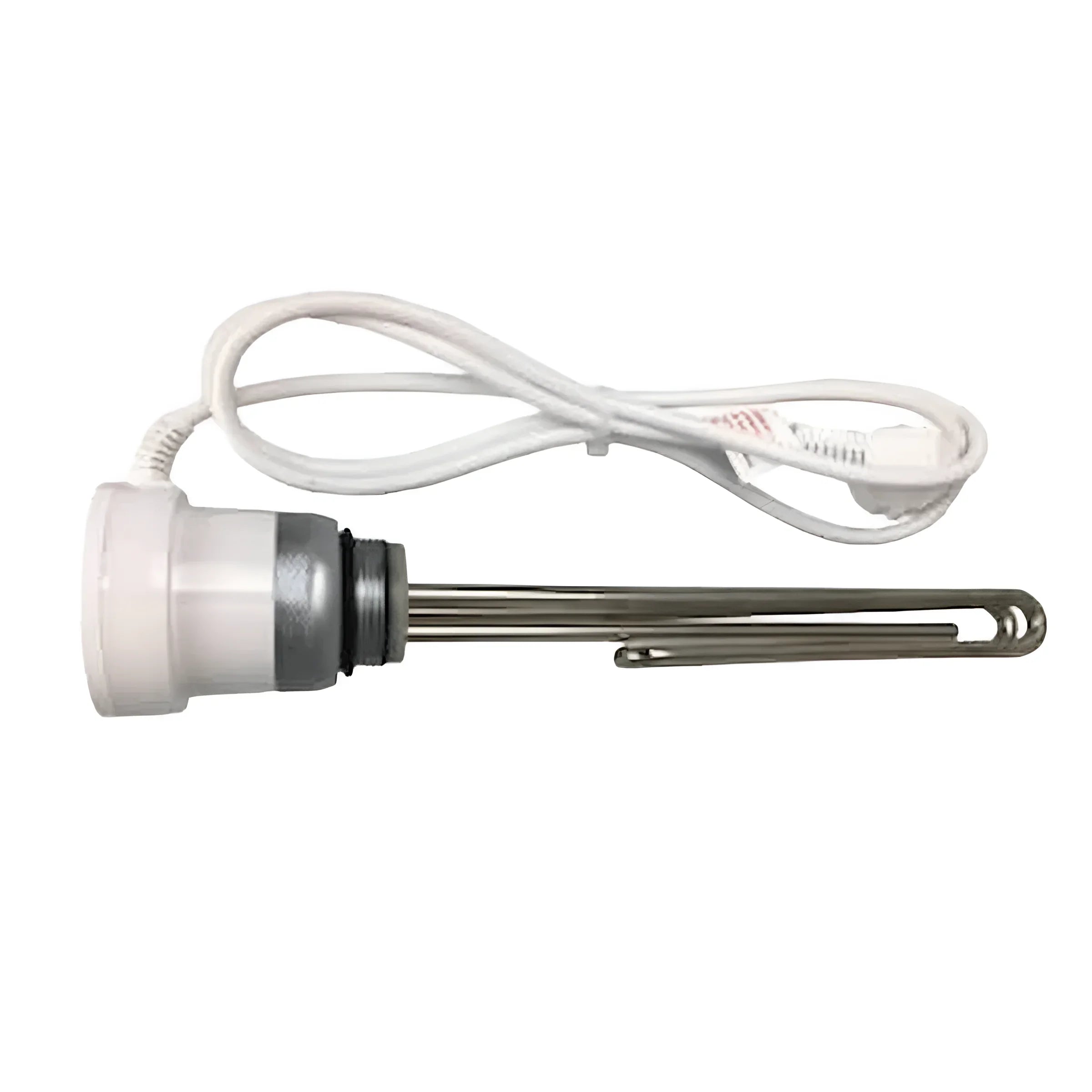

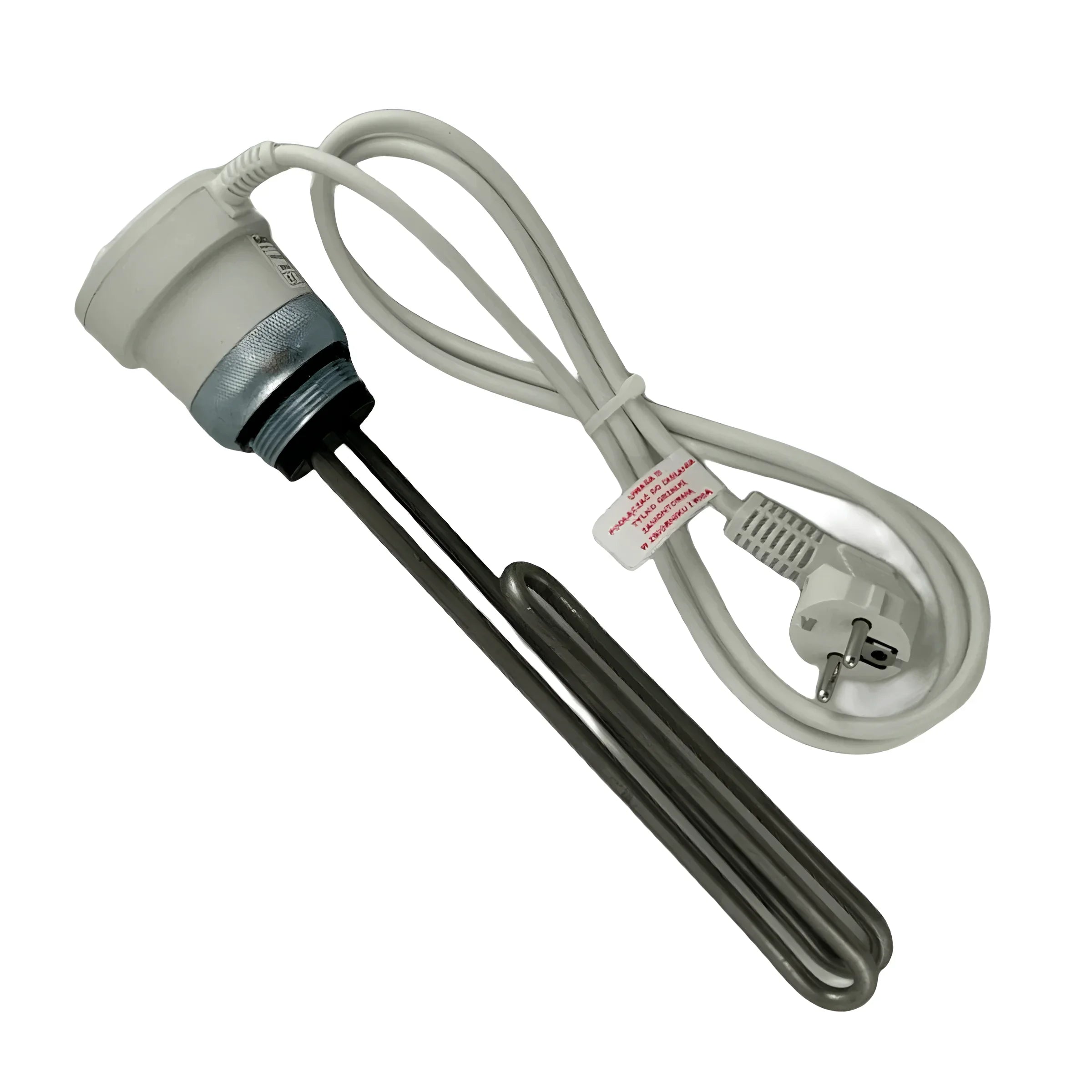

The heating cartridge impresses with its user-friendly design: the compact installation length of 300 mm and the unheated length of 70 mm allow for easy installation. The included 1.5-meter connection cable with Schuko plug guarantees uncomplicated power supply.
With a degree of protection according to IPX4, the heating cartridge is protected against splash water and withstands demanding operating conditions. The maximum operating pressure of 10 bar completes the safety concept.
Technical details of the heating element
The heating cartridge has a heating output of 2 kW and operates within a temperature range of 5 to 75 °C. A switch-on hysteresis of 7 to 10 °C ensures energy-efficient operation. Connection is via a 1 1/2" external thread and is optimized for use in domestic hot water and drinking water storage tanks.
Thanks to the robust construction made of white plastic and the use of high-quality materials, this product provides reliable heat supply for private and commercial applications.
Scope of delivery and installation
In addition to the actual device, the hot water tank also includes detailed operating and maintenance instructions that support proper commissioning. The enamel coating and the large magnesium anode also guarantee long-term corrosion protection.
The scope of delivery of the heating element includes the Elektromet heating cartridge including gasket as well as detailed instructions. This ensures quick and uncomplicated installation, which is a great advantage for both professionals and DIY enthusiasts.
Technical data
Technical data hot water tank
- Volume: 150 liters
- Heat exchanger surface area: 1.4 m²
- Heat exchanger content: 6.1 liters
- Connection flow and return heating: 3/4" male thread
- Connection flow and return domestic hot water: 3/4" male thread
- Connection circulation: 3/4" male thread
- Connection magnesium anode: 1 1/4" female thread
- Connection for electric heating: 1 1/2" female thread
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage tank 95 °C
- Max. operating pressure storage tank / heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Heat loss: 36 watts
- Inner diameter of storage tank: 510 mm
- Dimensions with insulation (diameter x H): 625 x 980 mm
- Weight (empty): 76 kg
Technical data heating element
- Heating output: 2 kW
- Temperature control: 5-75°C
- Switch-on hysteresis: 7-10°C
- Installation length: 300 mm
- Unheated length: 70 mm
- Safety temperature limiter: 93°C
- Connection: 1 1/2" male thread
- Protection class: IPX4
- Max. operating pressure: 10 bar
- Outer shell material: plastic, white
- Heating coil material: Alloy 825
- Power supply: single-phase 230 V / 16 A
- Cable length: 1.5 meters with Schuko plug
Scope of delivery
- Domestic hot water tank 150 liters
- Heating element 2 kW with 1 1/2" male thread
- Installation and operating instructions
