120 L hot water tank with Incoloy 825 heating element – Efficient and versatile water heating
Product Overview
The hot water tank with a 120-liter capacity impresses with its central and safe water heating, which is ideal for daily hot and drinking water needs. Equipped with an integrated heat exchanger, it offers reliable operation for service water and drinking water, combining comfort and efficiency in one unit.
This system allows heat to be utilized from various sources such as a thermal solar system or a boiler, and to flexibly contribute to heating your hot water.
Innovative Heat Transfer
The highly efficient heat exchanger inside the tank optimally transfers thermal energy to the service water. This enables effective use of heat sources, which can increase hot water comfort and reduce operating costs.
Thanks to the integrated circulation connection, the system also ensures even heat distribution throughout the tank, resulting in a constant and immediately available hot water supply.
Robust Corrosion Protection
To ensure a long service life, the hot water tank is protected on the inside by a high-quality enamel coating. This measure secures the hot water supply for years to come.
In addition, a large magnesium anode serves as a sacrificial anode, protecting the tank from corrosion. This dual protection system guarantees reliable and low-maintenance operation.
Technical details and dimensions
With a volume of 120 liters and a heat exchanger surface area of 1.4 m², this storage tank offers sufficient capacity for a hot water demand of 100 to 180 liters. The thermal insulation made of firmly foamed polyurethane foam reduces heat losses to a minimum.
The water-side specifications include, among other things, connections for flow, return, and circulation in 3/4" male thread and a maximum operating temperature of 95 °C. The robust design and well-thought-out technology ensure safe operation at a maximum pressure of 6 bar.
Connection options and versatility
The storage tank type is versatile and compatible with various heating systems such as solid fuel, wood gasification, pellet, or combination boilers, and can also be easily coupled with a solar thermal system. This flexibility makes it possible to optimally adapt the device to individual needs.
In addition, there is the option of connecting the storage tank to a retrofittable electric heating element, which provides additional heat when needed – ideal for use in conjunction with photovoltaic systems.

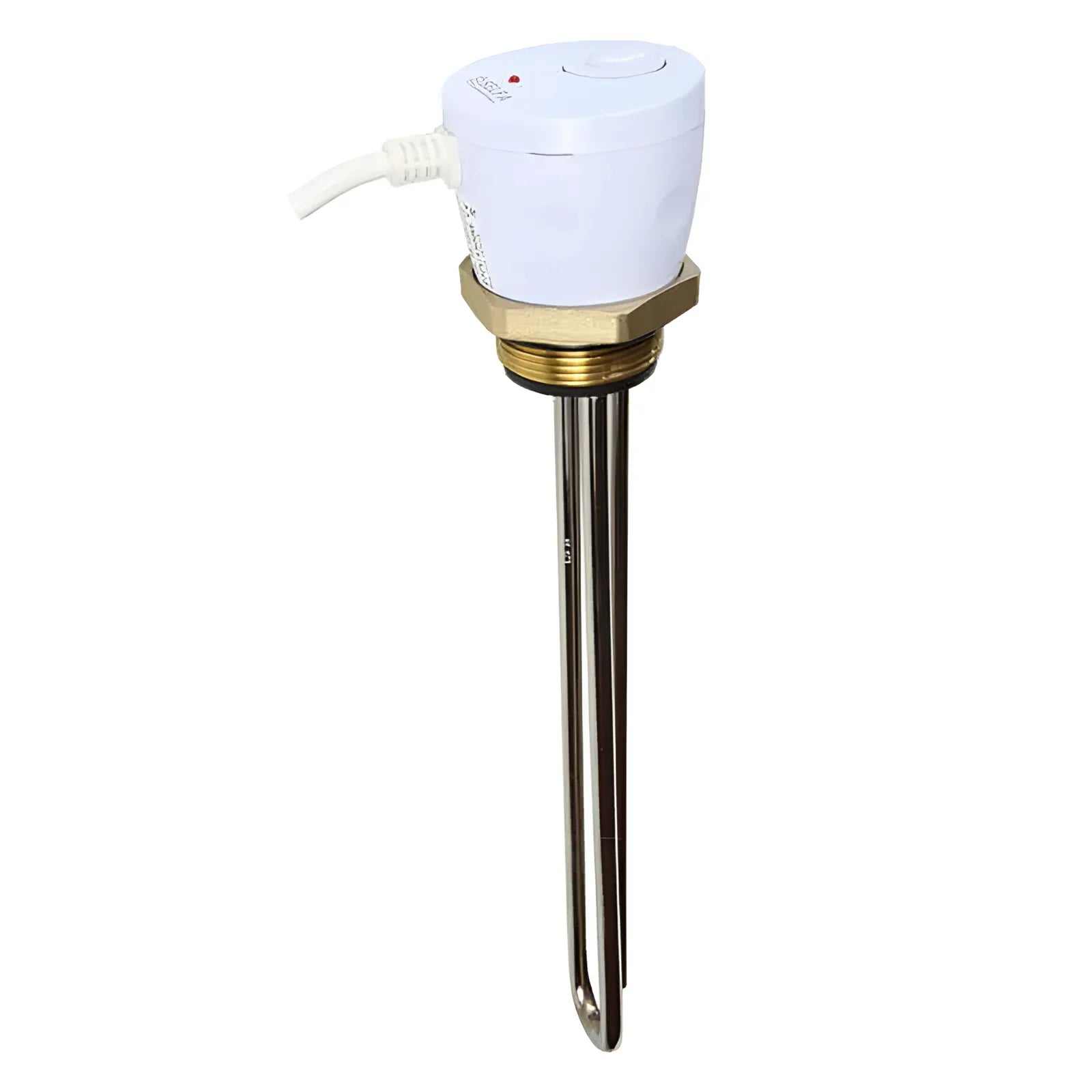

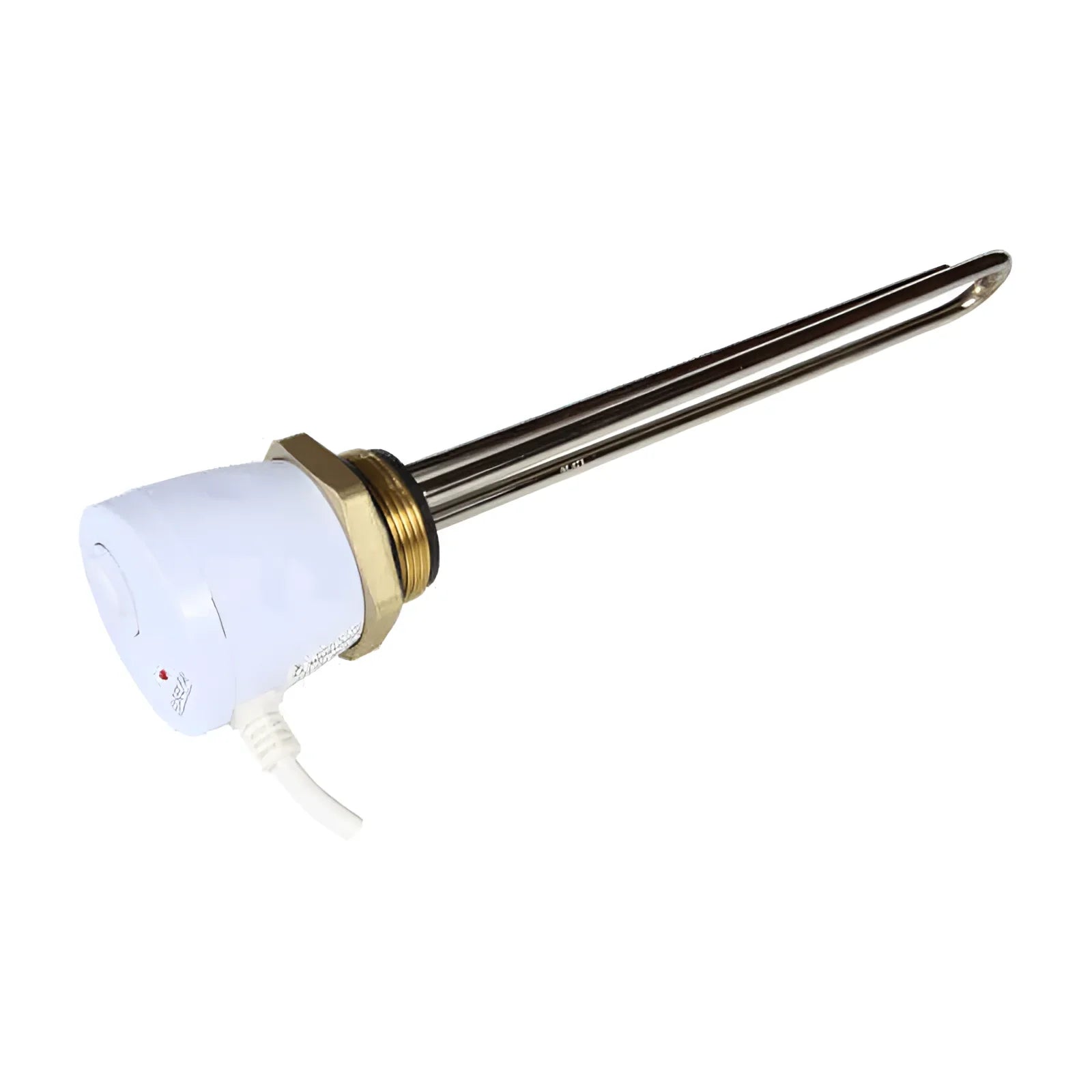

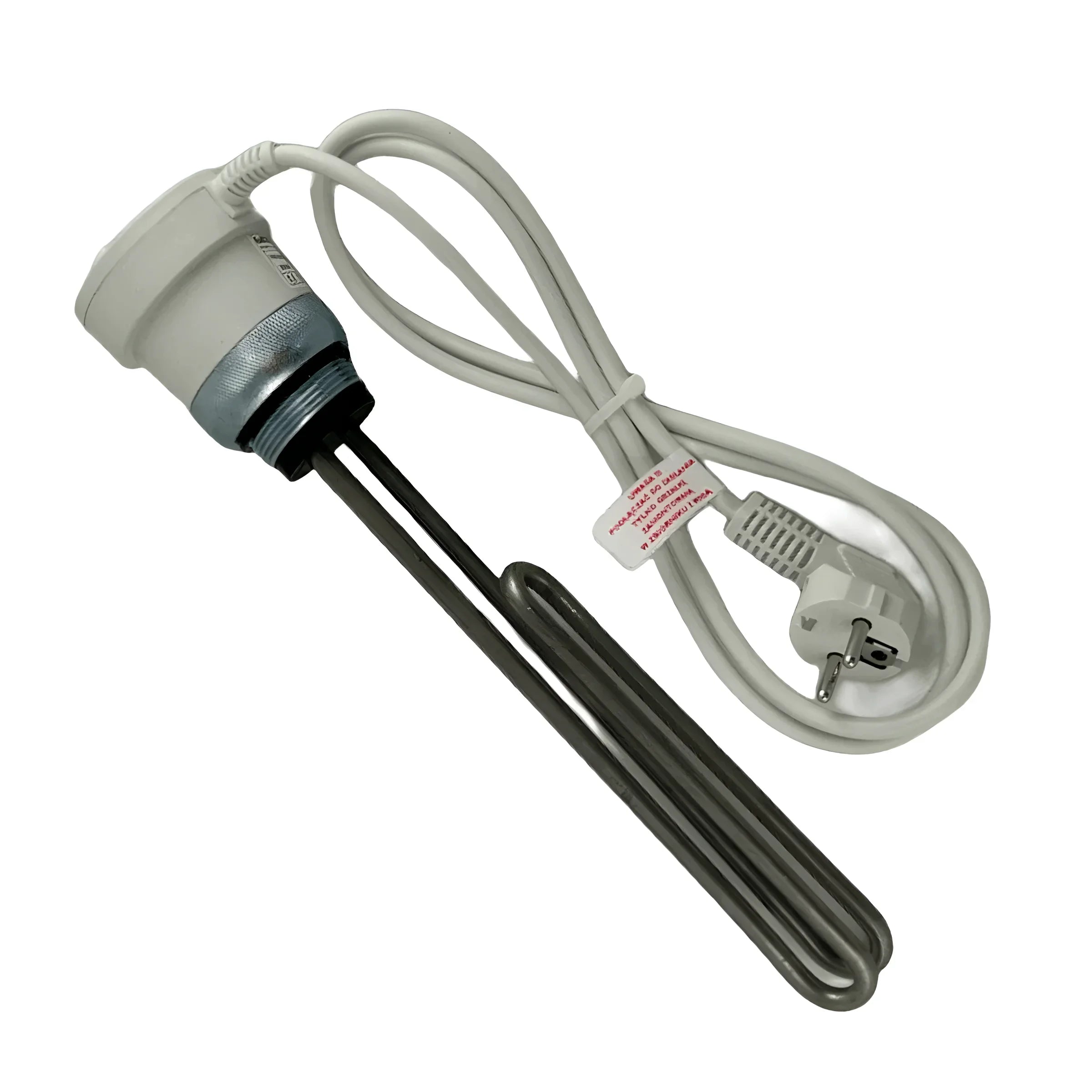

Electric heating element – Reliable heating solution made of INCOLOY 825
The electric heating element in the power variants 2 kW or 3 kW stands for efficiency and durability. Made of the high-quality INCOLOY 825 alloy, it offers outstanding corrosion resistance and is therefore the ideal addition for domestic hot water or buffer storage tanks.
With an adjustable temperature range of 30 °C to 75 °C and an integrated over-temperature switch that activates at 85 °C, the heating element ensures safe operation. The plug-ready application at 230V enables simple and flexible installation, so that modern safety standards and user comfort are both taken into account.
Conclusion
The 120 L hot water tank with Incoloy 825 heating element offers a modern solution for efficient hot water preparation. Its efficient heat exchanger, comprehensive corrosion protection, and versatile connection options make it an ideal choice for a wide range of heating systems.
In combination with the robust electric heating element, this creates a system that not only delivers high comfort but also impresses with durability and reliability – an investment in quality and future-proofing for your hot water supply.
Technical Data
Technical Data Hot Water Tank
- Volume: 120 liters
- Heat exchanger surface: 1.4 m²
- Heat exchanger content: 6.1 liters
- Connection flow and return heating: 3/4" male thread
- Connection flow and return domestic hot water: 3/4" male thread
- Circulation connection: 3/4" male thread
- Magnesium anode connection: 1 1/4" female thread
- Electric heating connection: 1 1/2" female thread
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature tank 95 °C
- Max. operating pressure tank / heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Heat loss: 32 watts
- Dimensions with insulation (diameter x height): 565 x 1045 mm
- Weight (empty): 71 kg

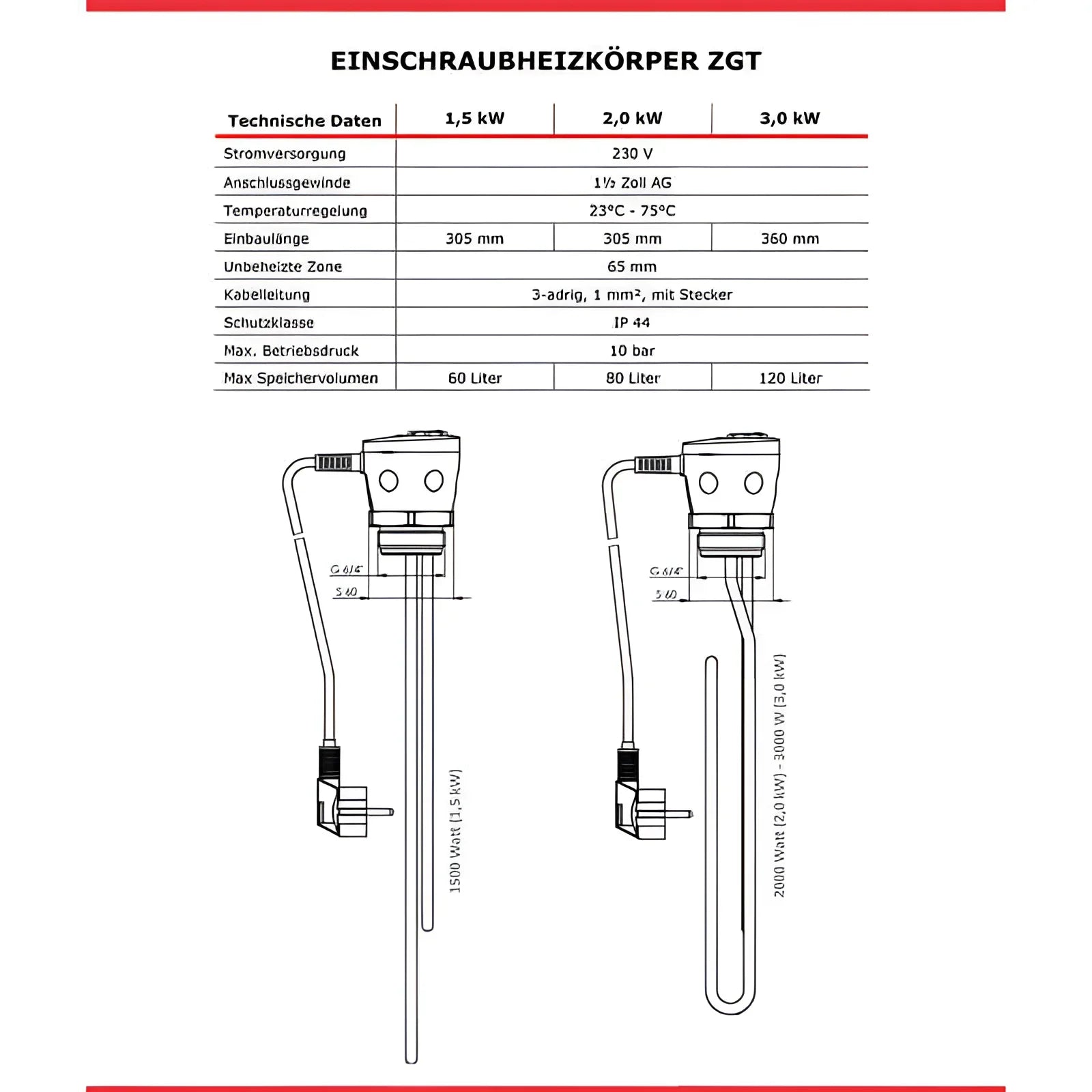

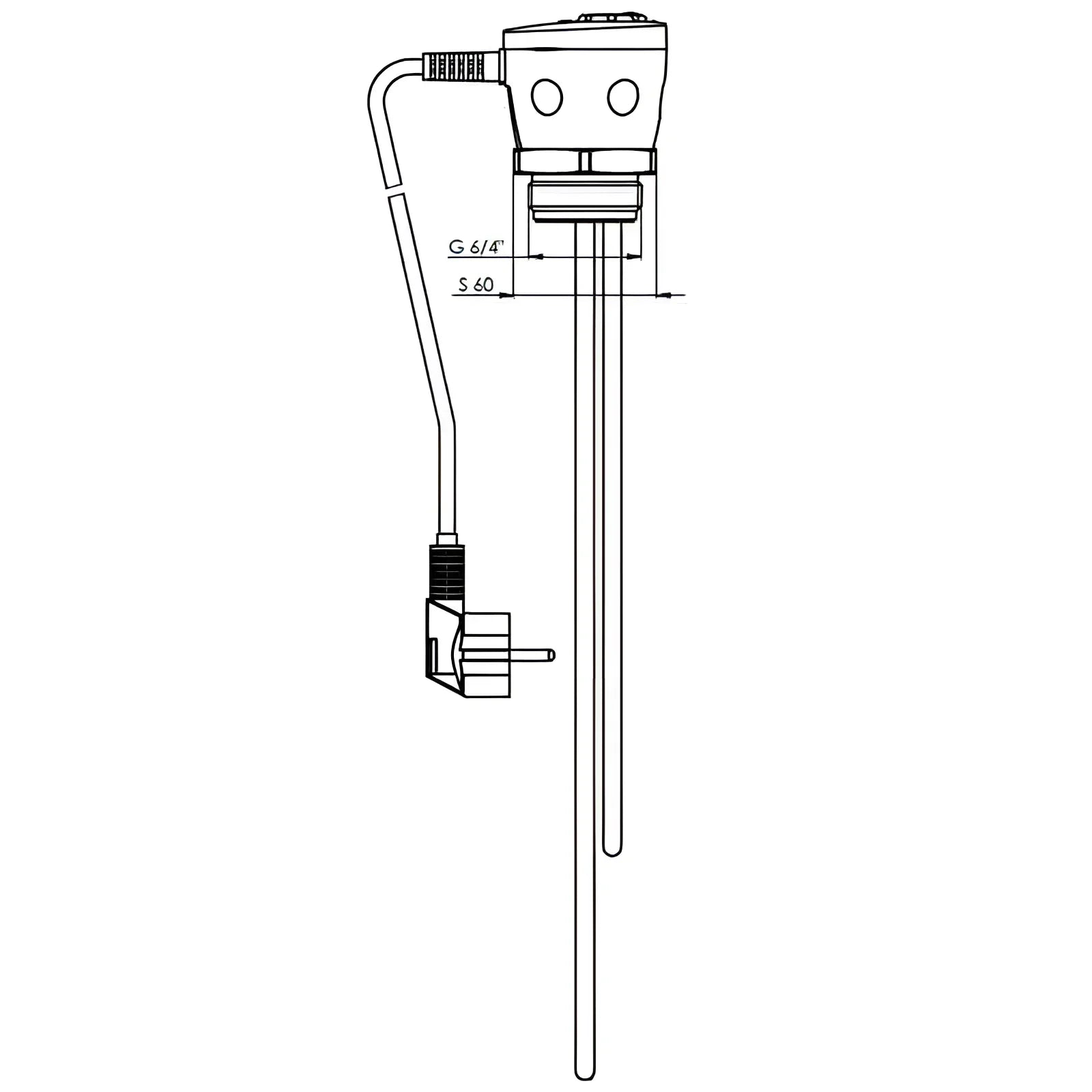

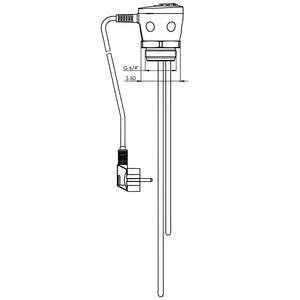

Technical data heating element
- Connection: 1 1/2"
- Power supply: 230V
- Max. operating pressure: 10 bar
- Unheated length: 65 mm
- Installation length: 305 mm
- Safety temperature limiter: 93 °C
Scope of delivery:
-
Domestic hot water tank with 1 heat exchanger incl. insulation
- Safety valve
- Incolony heating element 2 kW
- Operating and maintenance instructions
- Operating instructions for heating element
